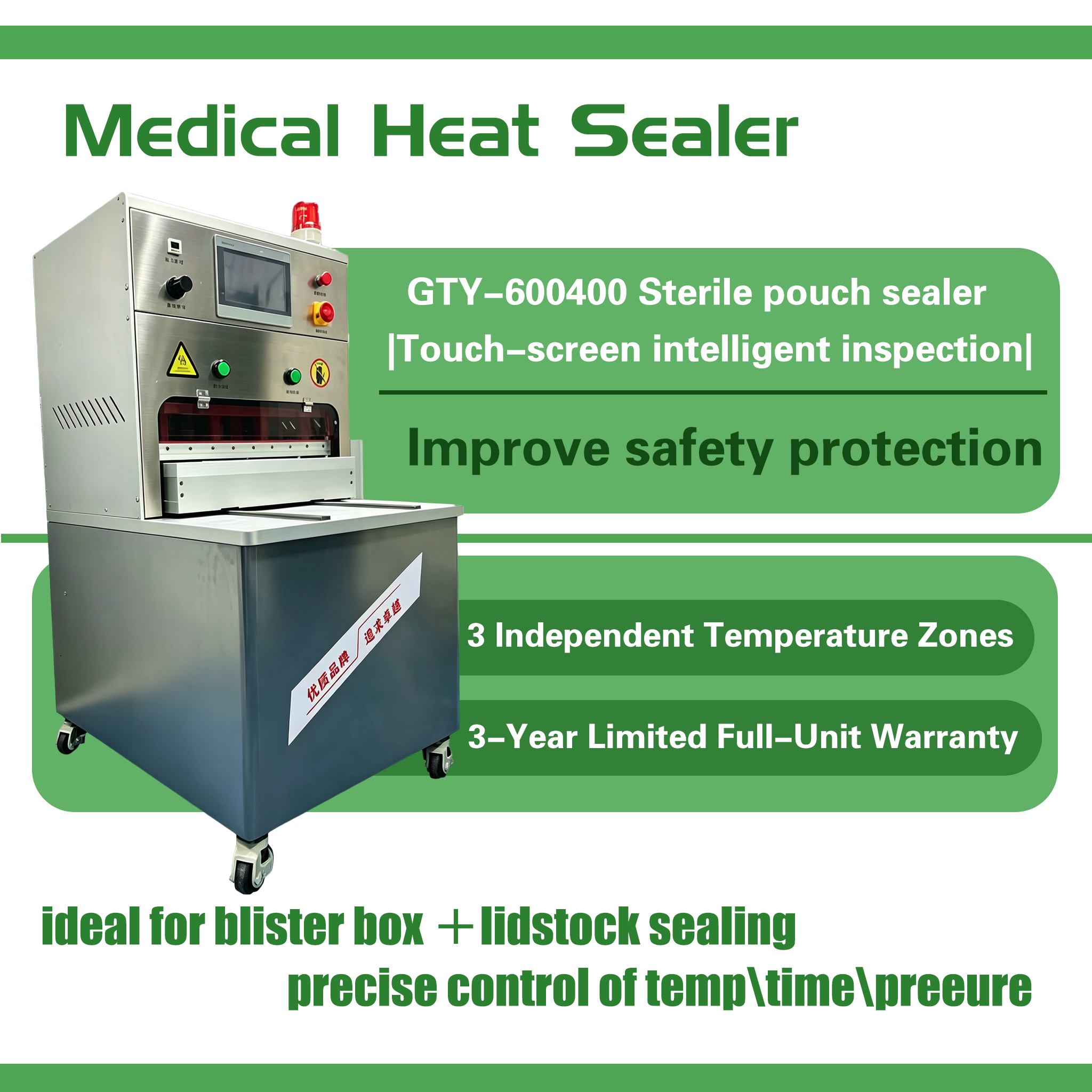

[Equipment function and purpose]
Sterile medical blister packaging box and DuPont dialysis paper seal pressure seal
[Product Features]
1. Medical blister sealing machine is suitable for blister box PETG/PP box/PE/PET/GAG+ special strong/dialysis paper, aluminum foil and other materials hot-press sealing;
2. Equipment design precise parameter control (temperature, time, pressure), simple operation by the operator and easy technical parameter management;
3. The whole machine components adopt international, domestic and foreign first-line brand electronic components and pneumatic accessories;
4. The advantages of this machine, electronic components and pneumatic accessories are guaranteed for three years;
5. The machine is mainly composed of 304 stainless steel plate and aluminum alloy, anti-corrosion material, meeting medical standards;
6. The main features of this device are small in size, easy to place and not occupy space, effective use of size, common functions, practical functions, etc., it is generally recommended to use the structure;
7. Provide customers with on-site heat sealing technical services and personnel training to assist customers in packaging and sealing verification.
The sealing equipment parameters are as follows:
Model | GUTE-400600 | ||
Power | 300550W/A | 350550W/B | 400600W/C |
Use air pressure | 5-6KG | 5-6KG | 5-6KG |
Voltage | 220V | 220V | 220V |
Heating plate size | 300*550mm | 350*550mm | 400*600mm |
Gold effective welding size | 220*470mm | 270*470mm | 380*580mm |
Maximum limit welding size | 250*500mm | 300*500mm | 360*560mm |
Device dimensions | 790*900*1500mm | 800*960*1500mm | 820*1000*1500mm |
